Installation of Loxone AC control unit for Mitsubishi MSZ-AP25VG & MVZ-KT25VG

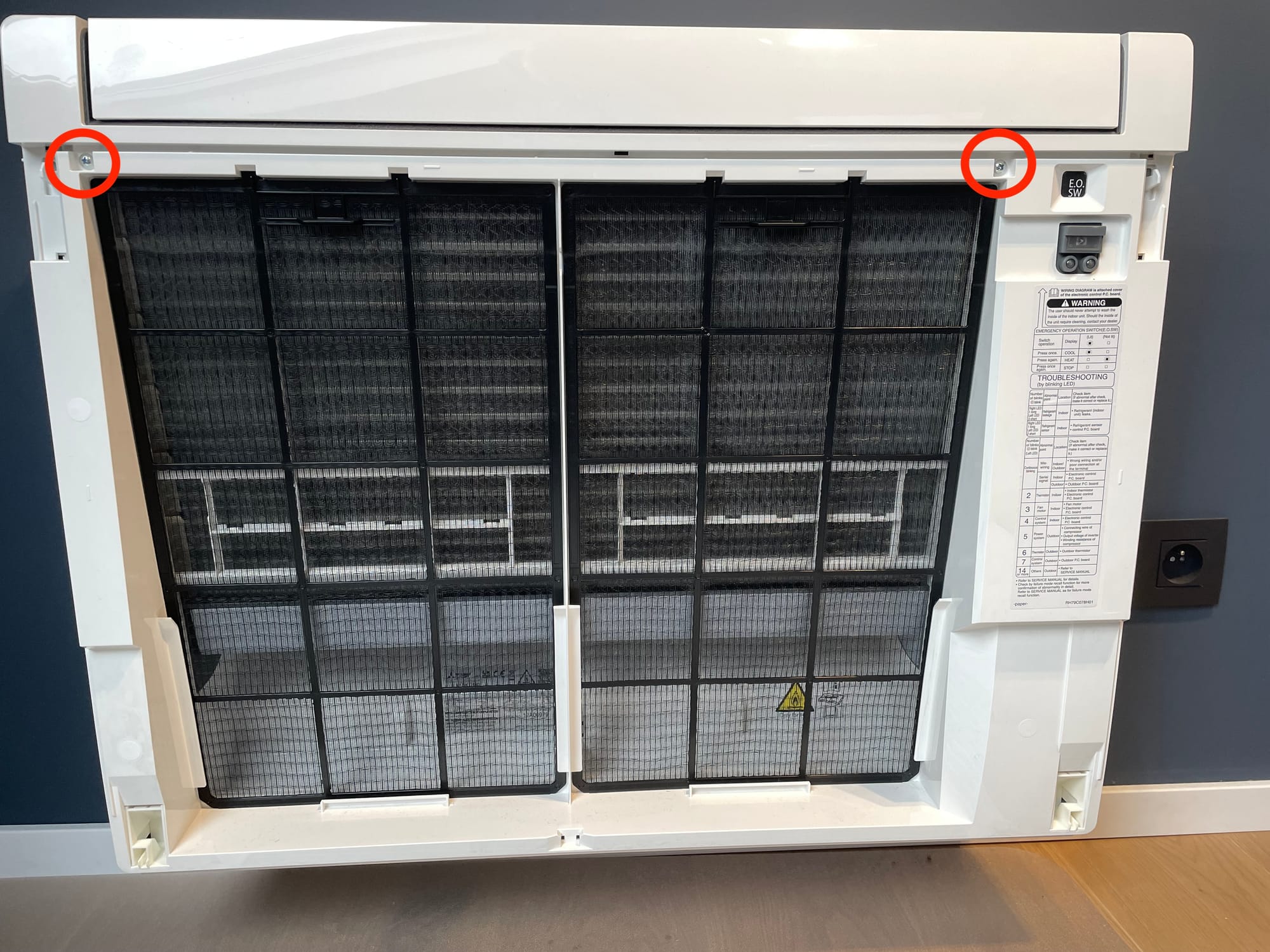

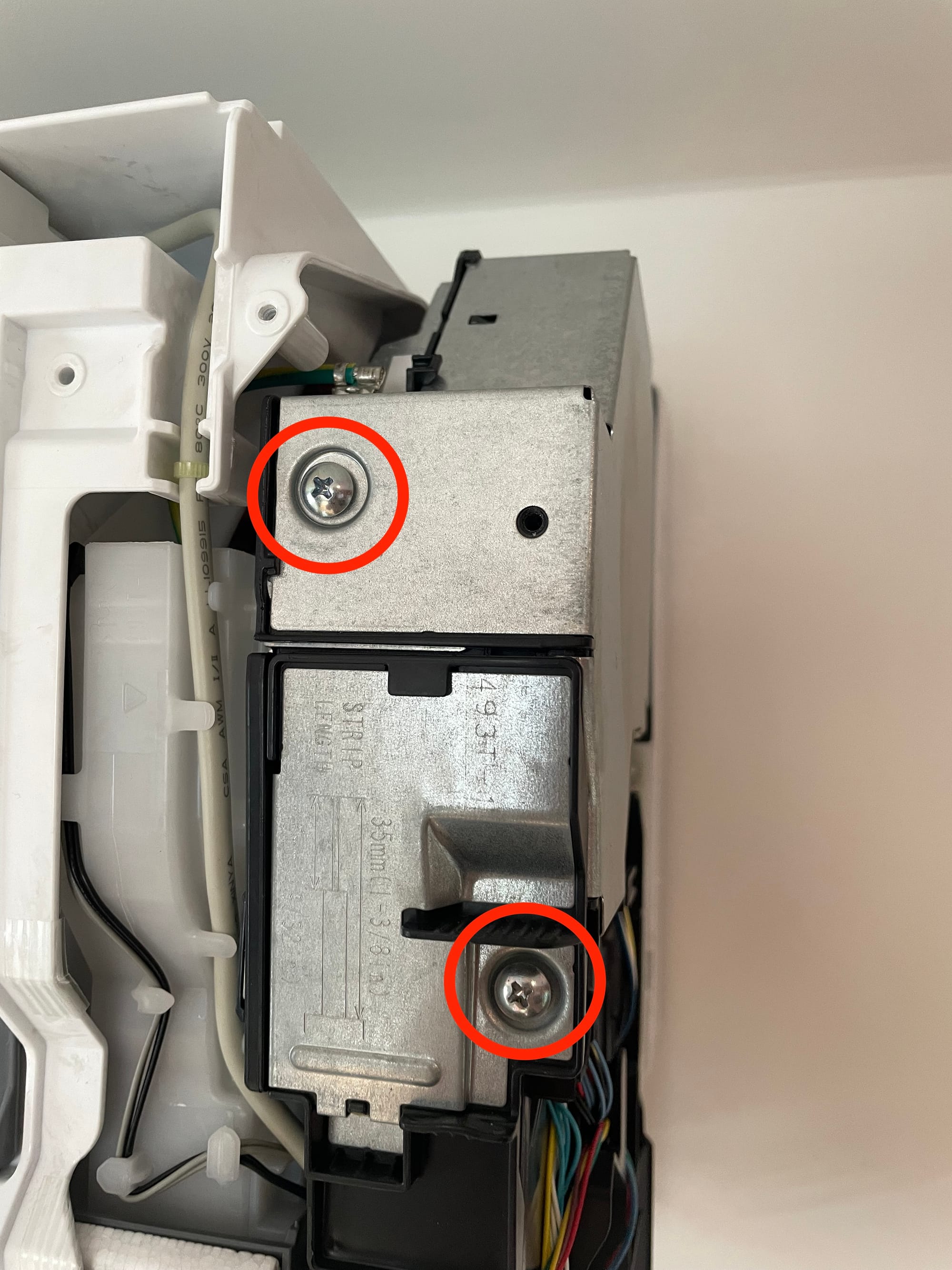

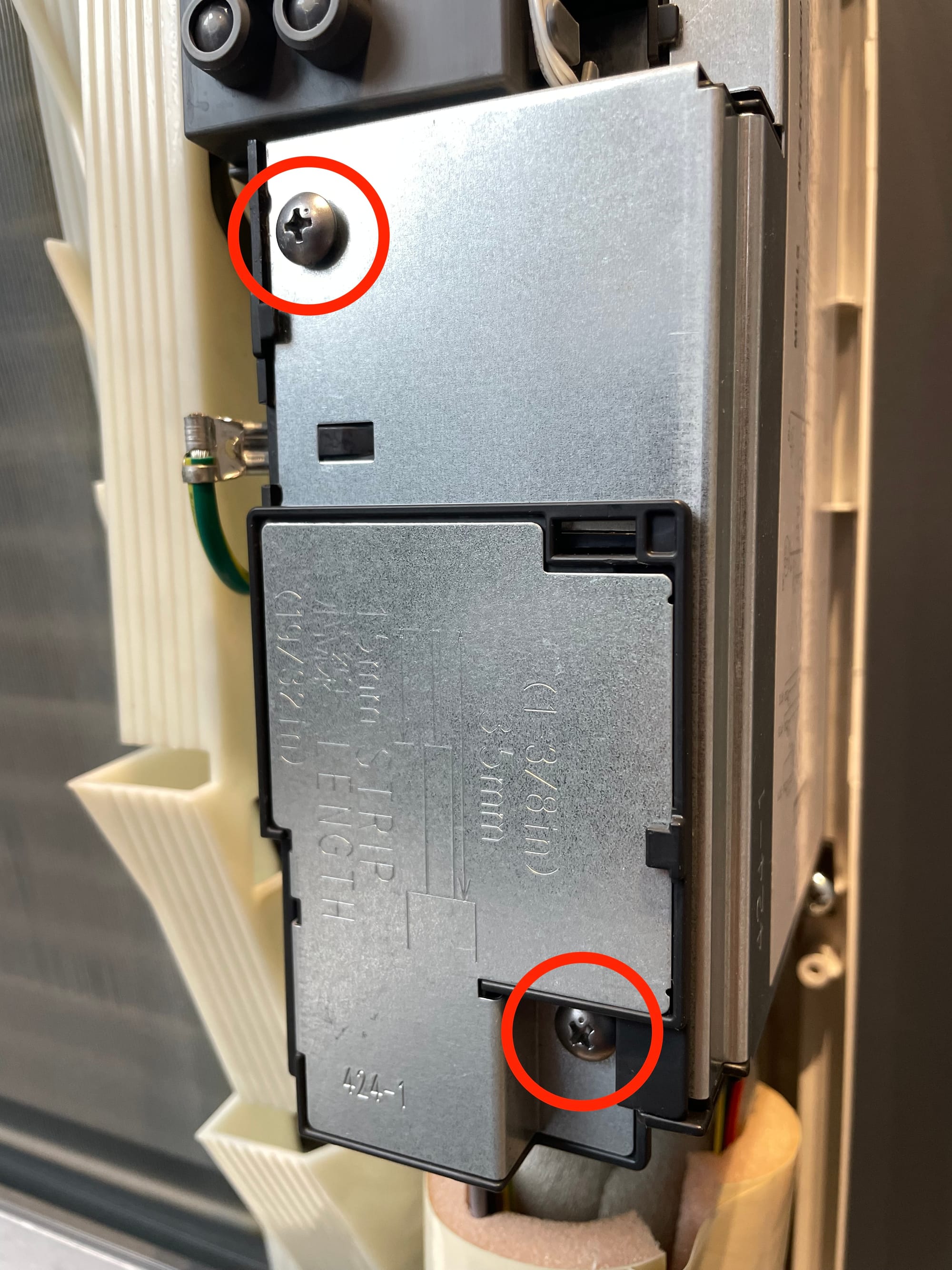

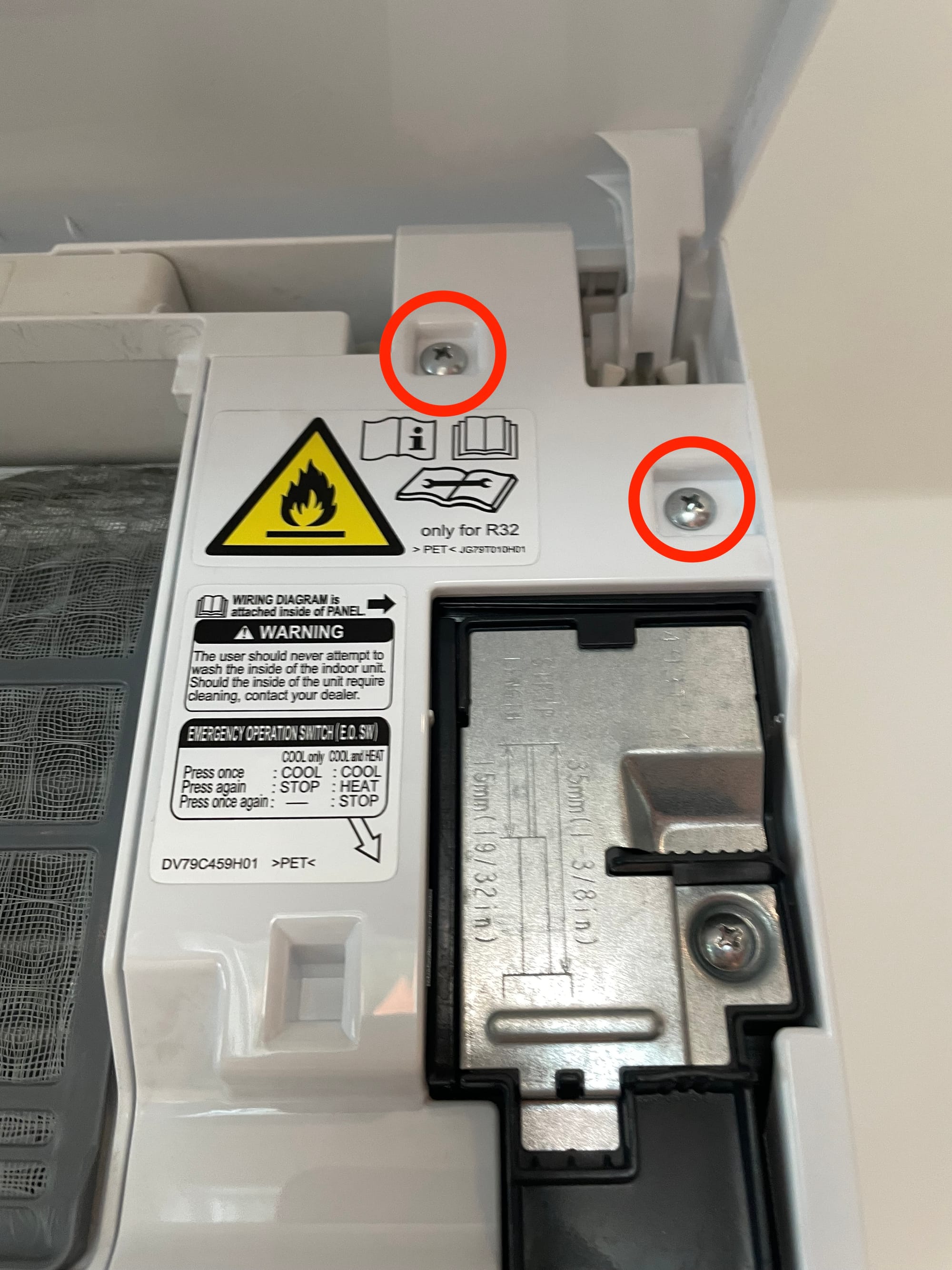

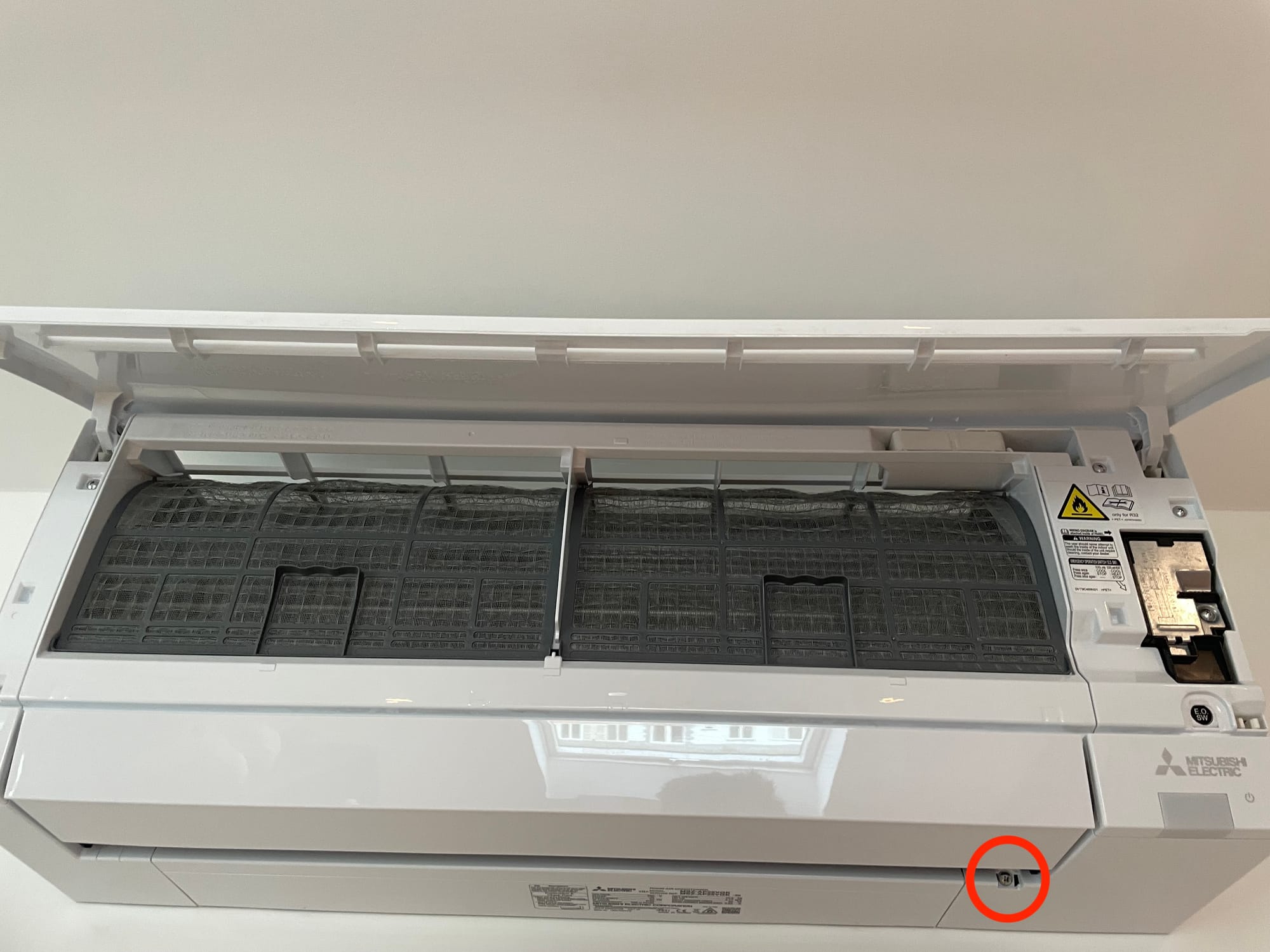

The following images capture the installation process of the Loxone AC Control Air unit on the Mitsubishi MVZ-KT25VG and MSZ-AP25VG models. The process is straightforward, with red circles marking the screws you’ll need to remove. Each component that needs detaching requires minimal force—take your time to ensure everything comes apart smoothly. Remember to turn off the power to the outdoor unit first, as the indoor units receive their power from it.

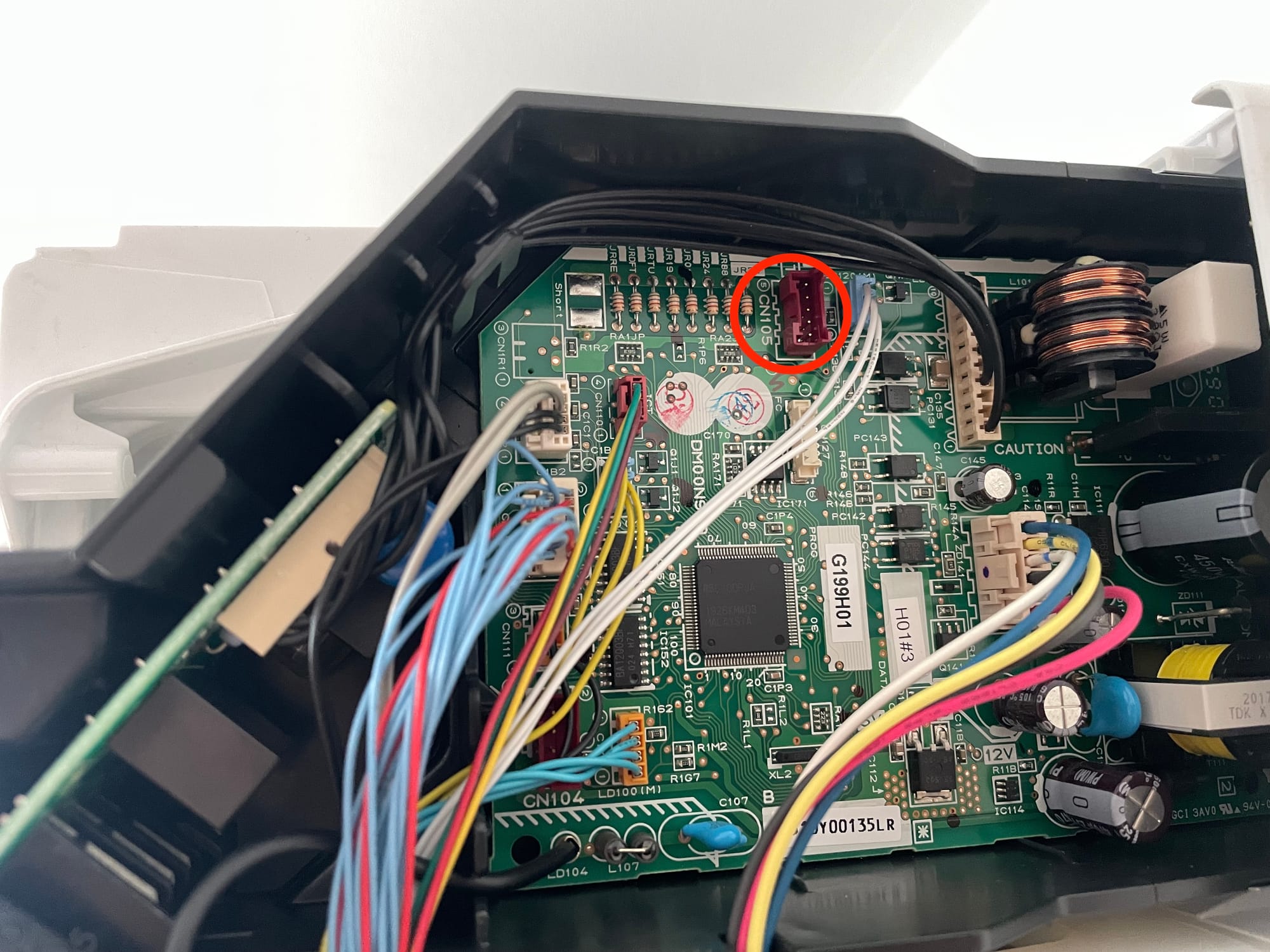

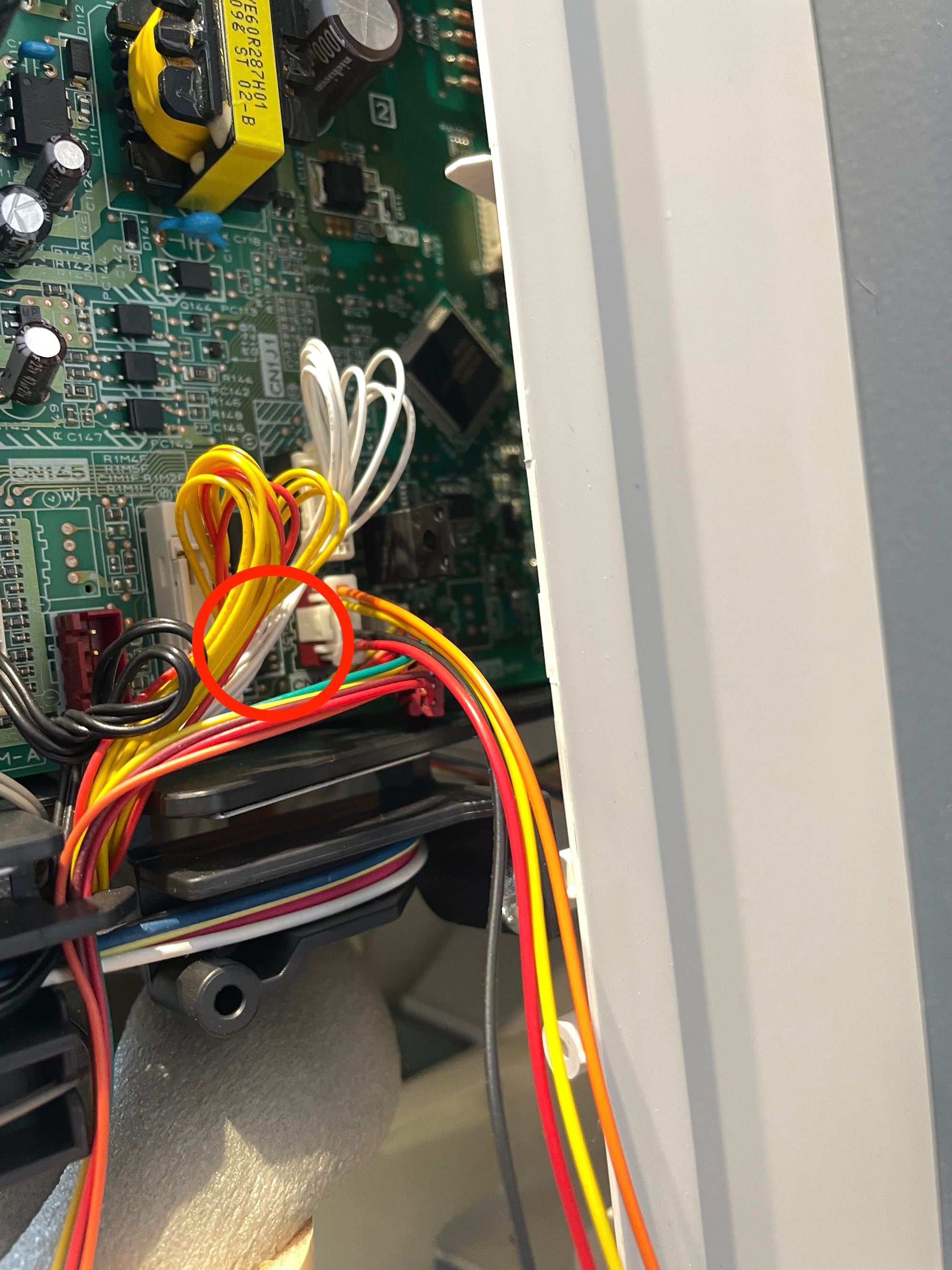

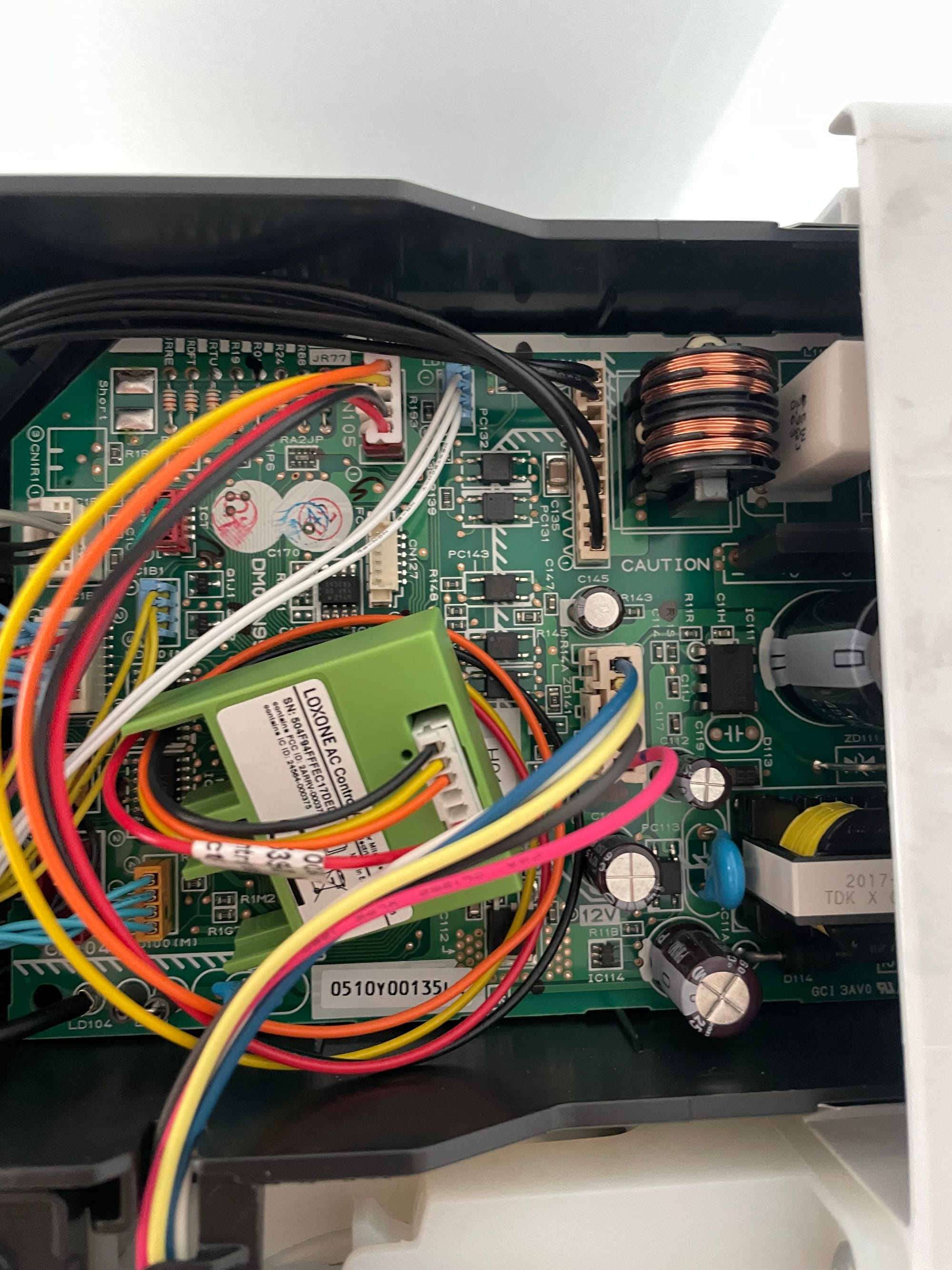

Lastly, plug the unit into the CN105 port, reassemble everything, and turn the power back on. Next, you can set up the unit through Loxone Config, and you're all set.

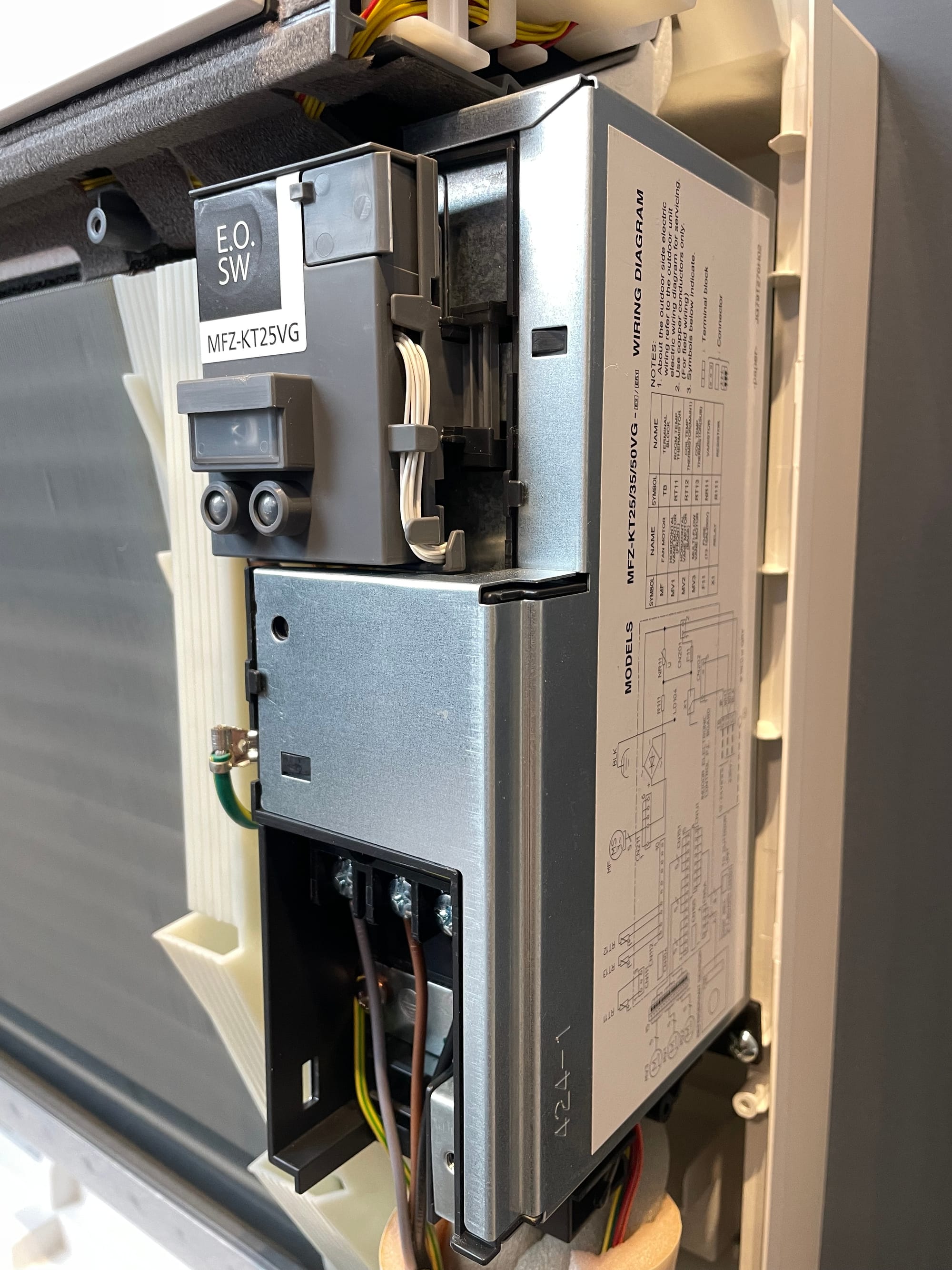

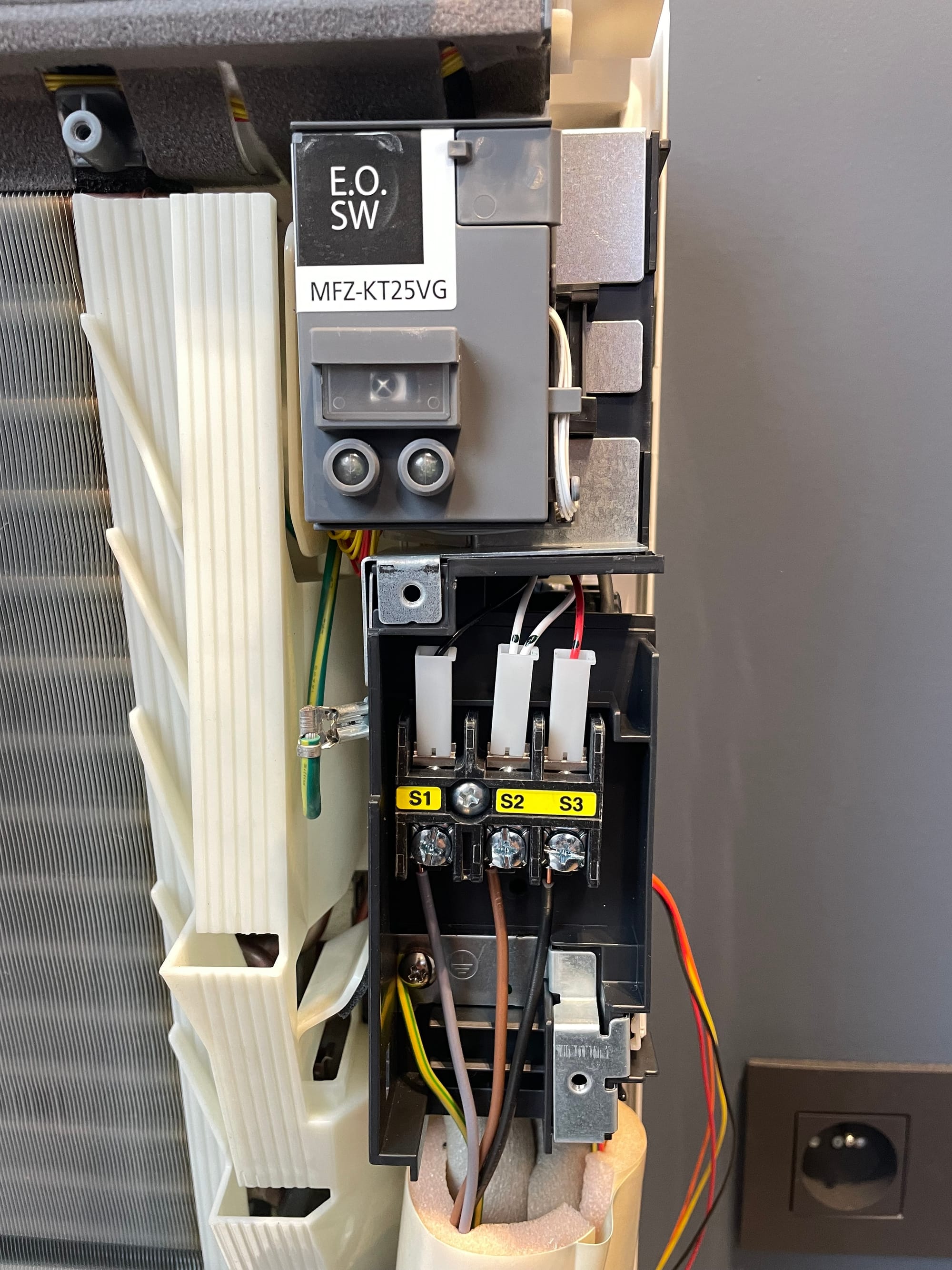

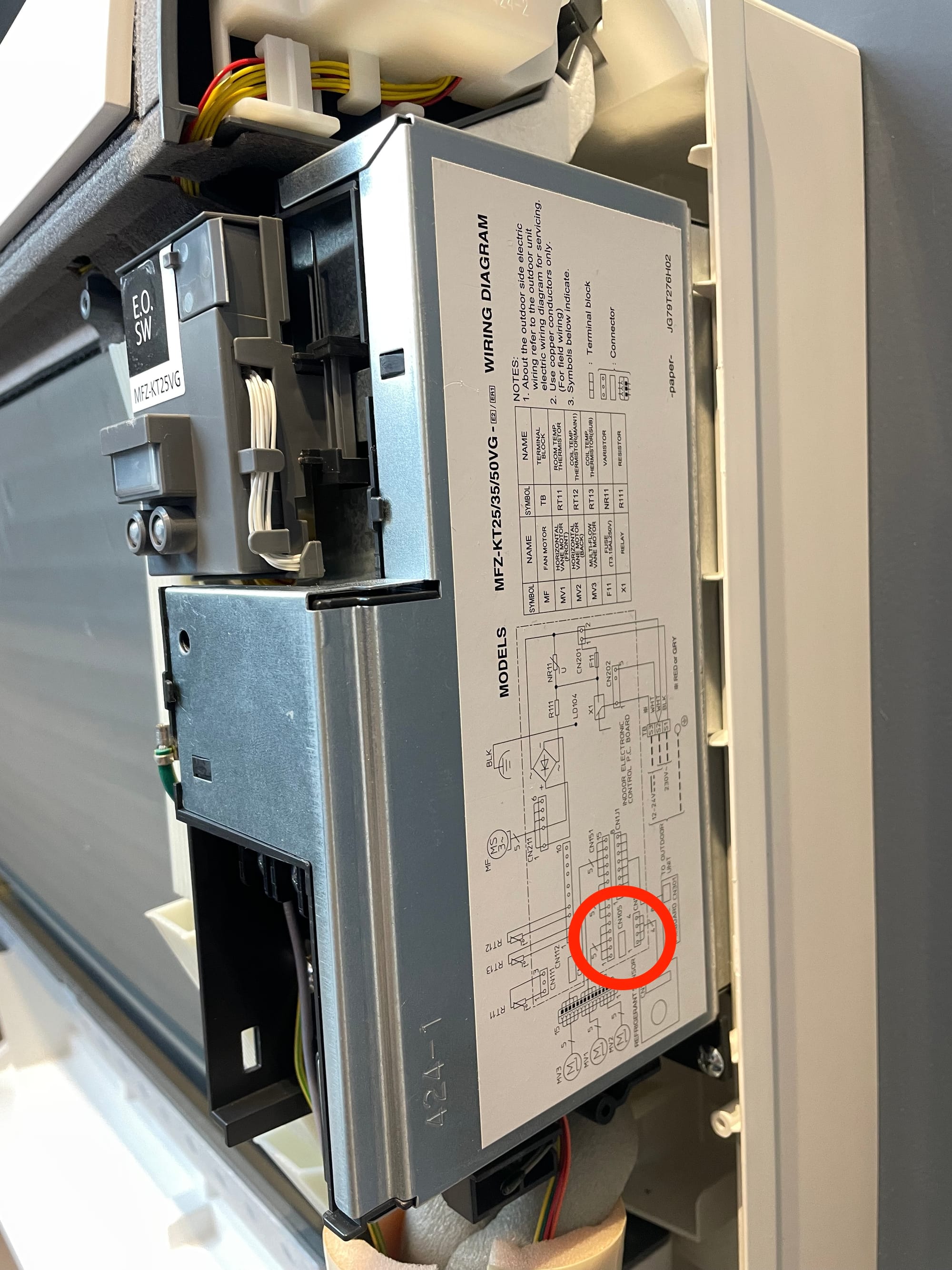

Installation on the Mitsubishi MFZ-KT25VG

Installation on the Mitsubishi MSZ-AP25VG
